Series WE/QW

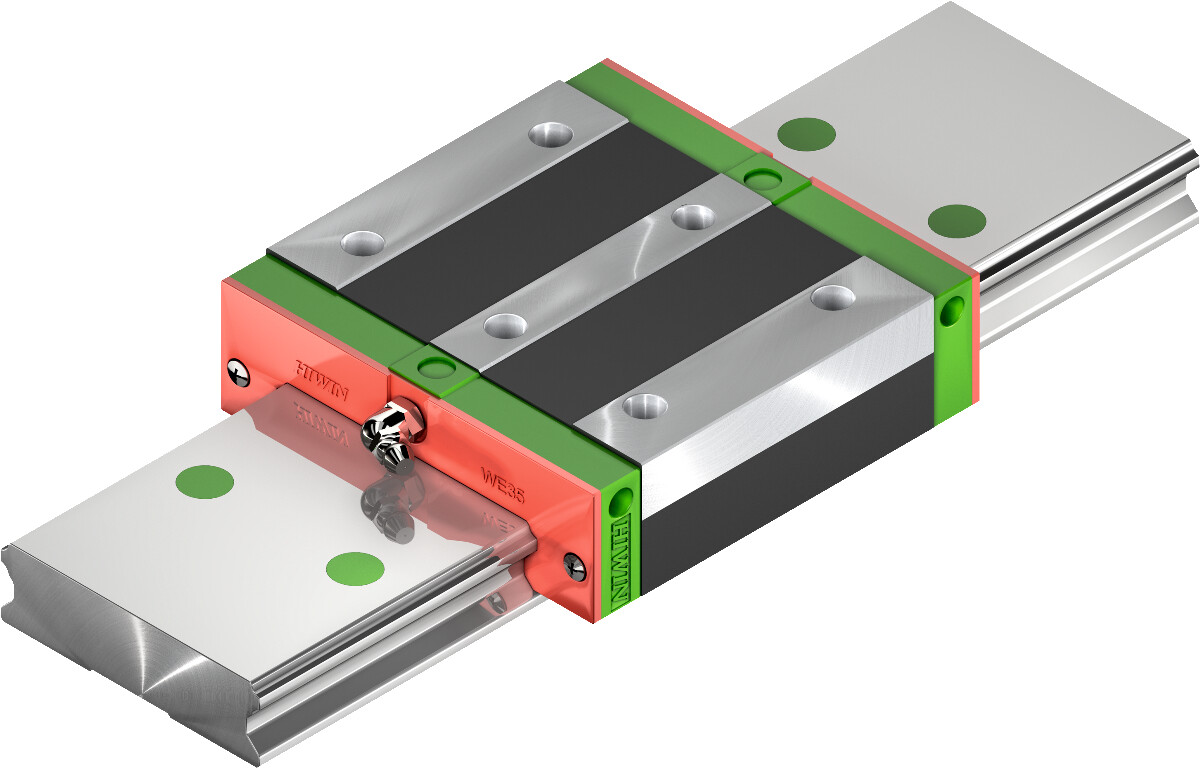

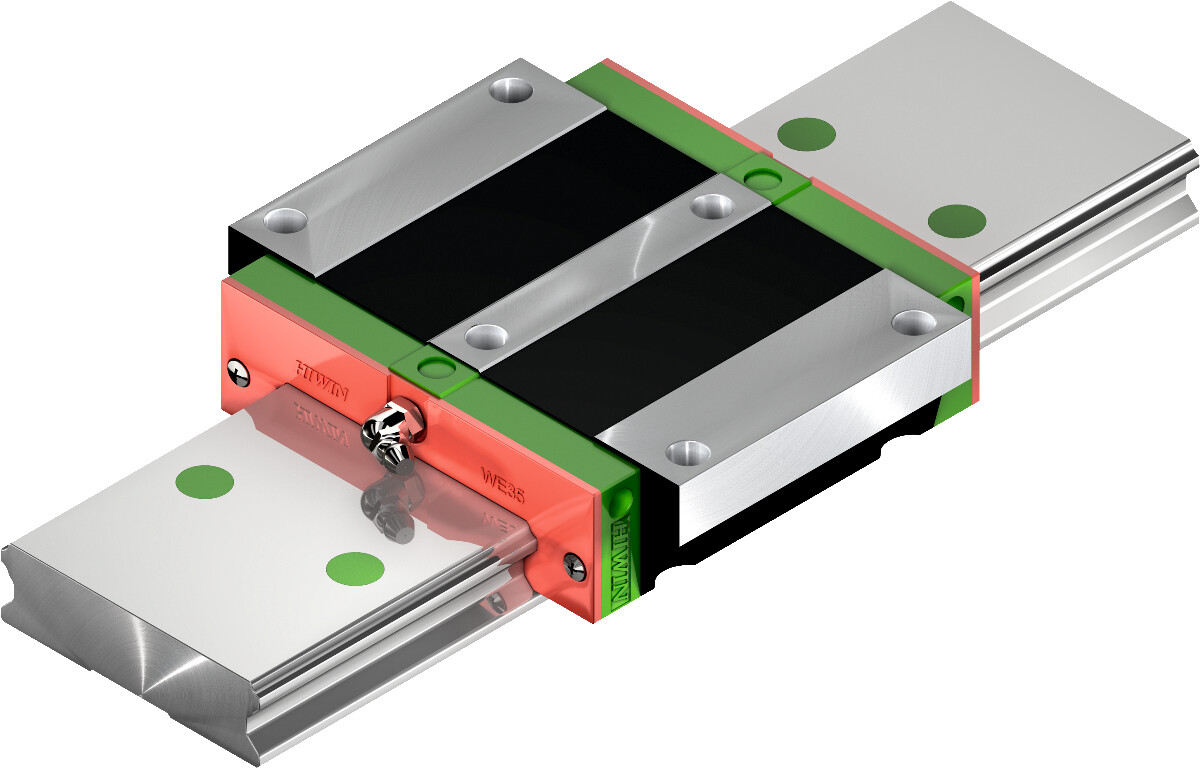

Extremely wide ball bearing guide that enables maximum torque loads, especially in the MX direction, thanks to the large rail width and low overall height. With our SynchMotion™ technology (ball chain), the WE series becomes a QW linear guideway - for higher travel speeds, extended relubrication intervals and improved synchronuous performance with lower running noise. You can find the right block under the accessories for the respective profile rail or directly under the menu item Blocks. Alternatively, you can configure your WE/QW linear guideway directly in our product configurator. CAD data and technical drawings are also available for download here.
16 product(s)
Configurator
Type
H
W
L
Cdyn
C0
H1

N

B

B1

C

L1

K1

K2

G

M

l

T

T1

H2

H3

Mass

M0X

M0Y

M0Z

WEH17CA
 17 50 50,6 5.230 9.640
WEH21CA
 21 54 59 7.210 13.700
QWH21CA
 21 54 59 9.000 12.100
WEH27CA
 27 62 72,8 12.400 21.600
QWH27CA
 27 62 73,2 16.000 22.200
WEH35CA
 35 100 102,6 29.800 49.400
QWH35CA
 35 100 107 36.800 49.200
WEH50CA
 50 130 140 61.520 97.000
WEW17CC
 17 60 50,6 5.230 9.640
WEW21CC
 21 68 59 7.210 13.700
QWW21CC
 21 68 59 9.000 12.100
WEW27CC
 27 80 72,8 12.400 21.600
QWW27CC
 27 80 73,2 16.000 22.200
WEW35CC
 35 120 102,6 29.800 49.400
QWW35CC
 35 120 107 36.800 49.200
WEW50CC
 50 162 140 61.520 97.000
