Direct exposure unit

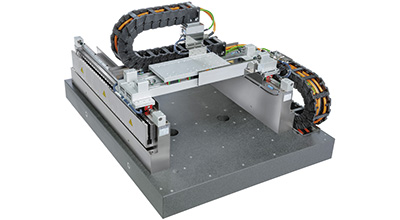

The compact miniature gantry system is used in a PCB direct exposure unit. In contrast to machine tools, for example, direct exposure units do not use rapid movements – instead, they use continuous movements that prioritise high path accuracy and precision. The HIWIN package solution including granite enables our customers to simplify project planning, installation and commissioning, as the individual components are already fully tailored to one another.

Requirements:

• Continuous speed
• Highest accuracy
• Modular design/concept

HIWIN component:

• X axis: coreless LMC linear motors
• Y axis: LMSA linear motor
• HG linear guideways
